Installing the Management Pack

  1. Copy the Microfocus.SEE.Azure.xml management pack file from the product’s etc\SEE\SCOM\Azure directory to a local folder.
  2. In System Center Operations Manager, click Administration - Management Packs.

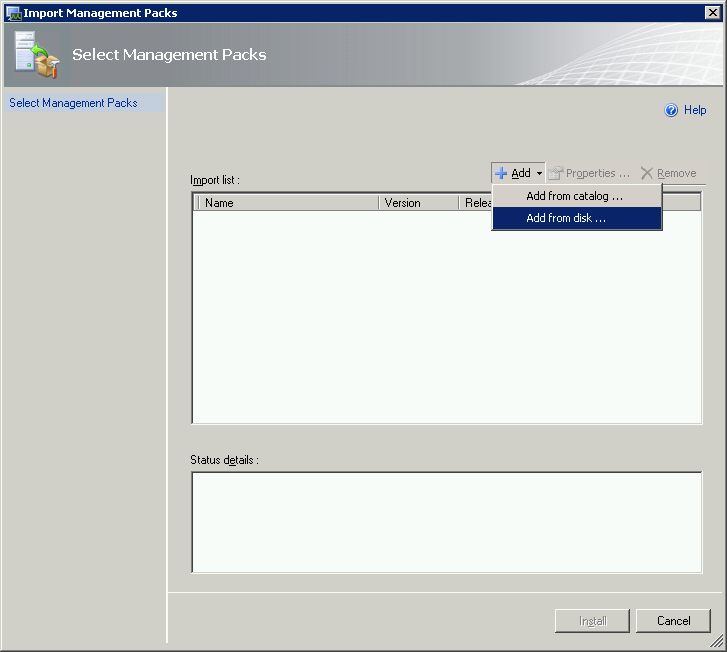

  3. From the menu bar, click Actions > Action-Import Management Packs.
  4. Click Add Add from Disk and browse to the location of the MicroFocus.SEE.Azure.mp file.

  5. Click Monitoring in SCOM.
  6. Under Monitoring, click Discovered Inventory.

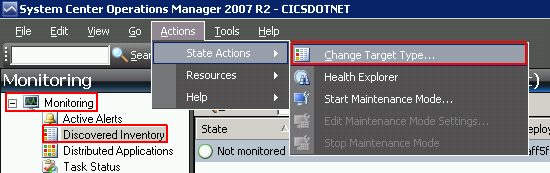

  7. From the menu, click Actions > State Actions > Change Target Type.

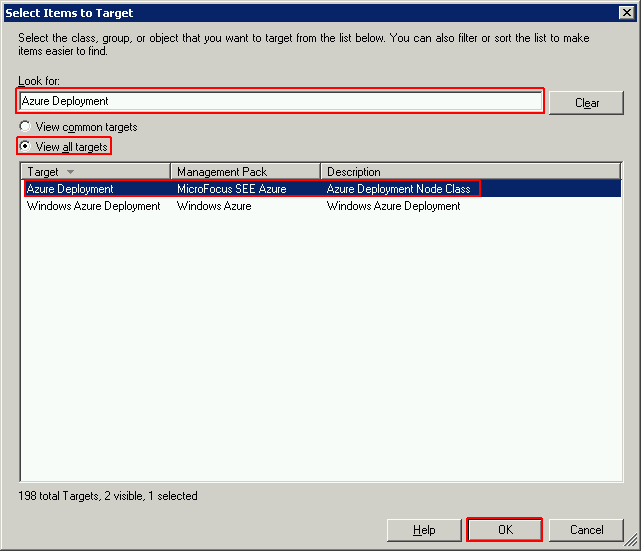

  8. Click View all Targets and Azure Deployment and click OK.

  9. Right-click the resulting Discovered Inventory item and click Open - diagram view.
  10. From the diagram, select any node and from the right Actions pane click Performance View.
Parent topic: System Center Monitoring Pack for Windows Azure Applications
